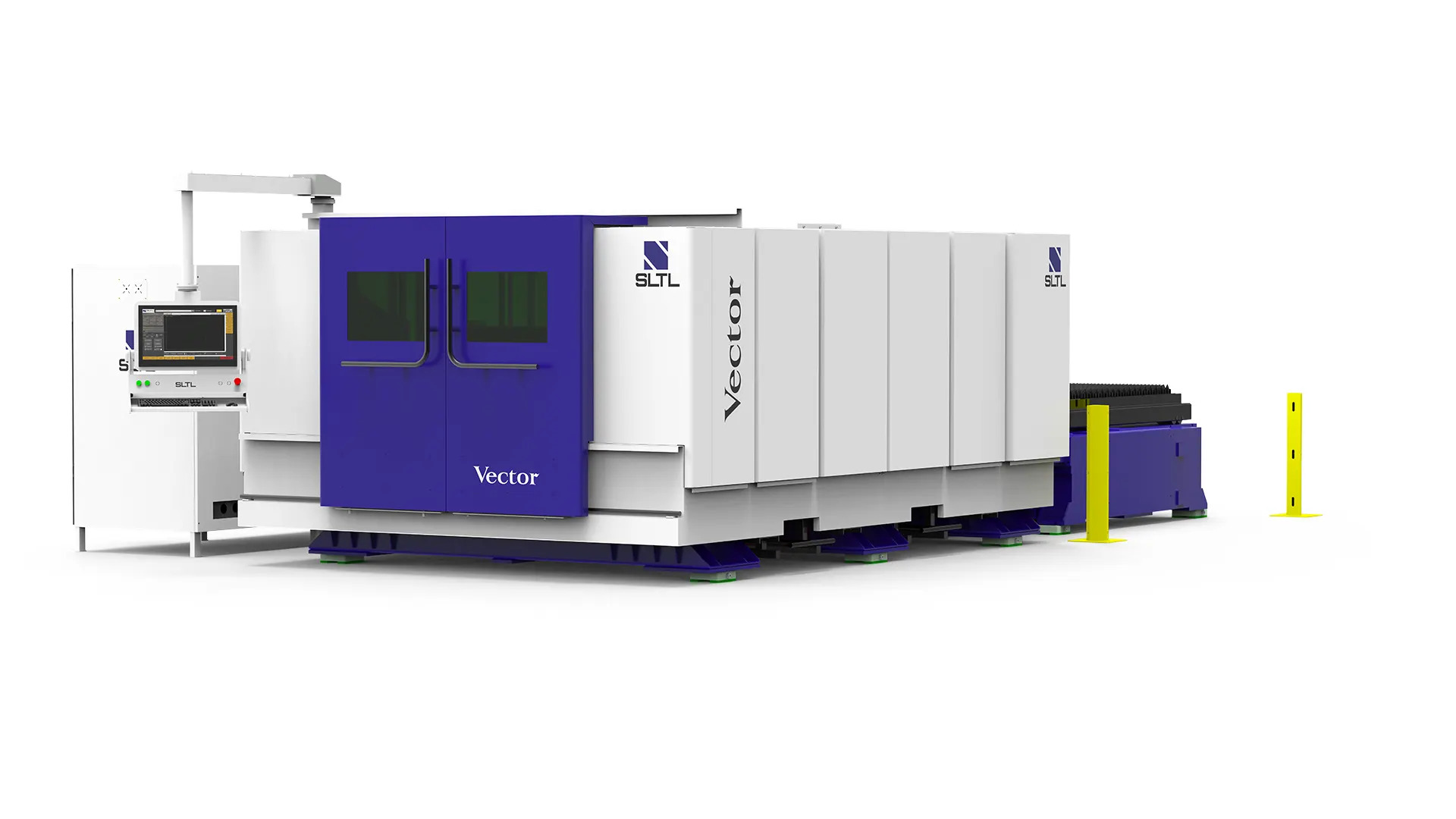

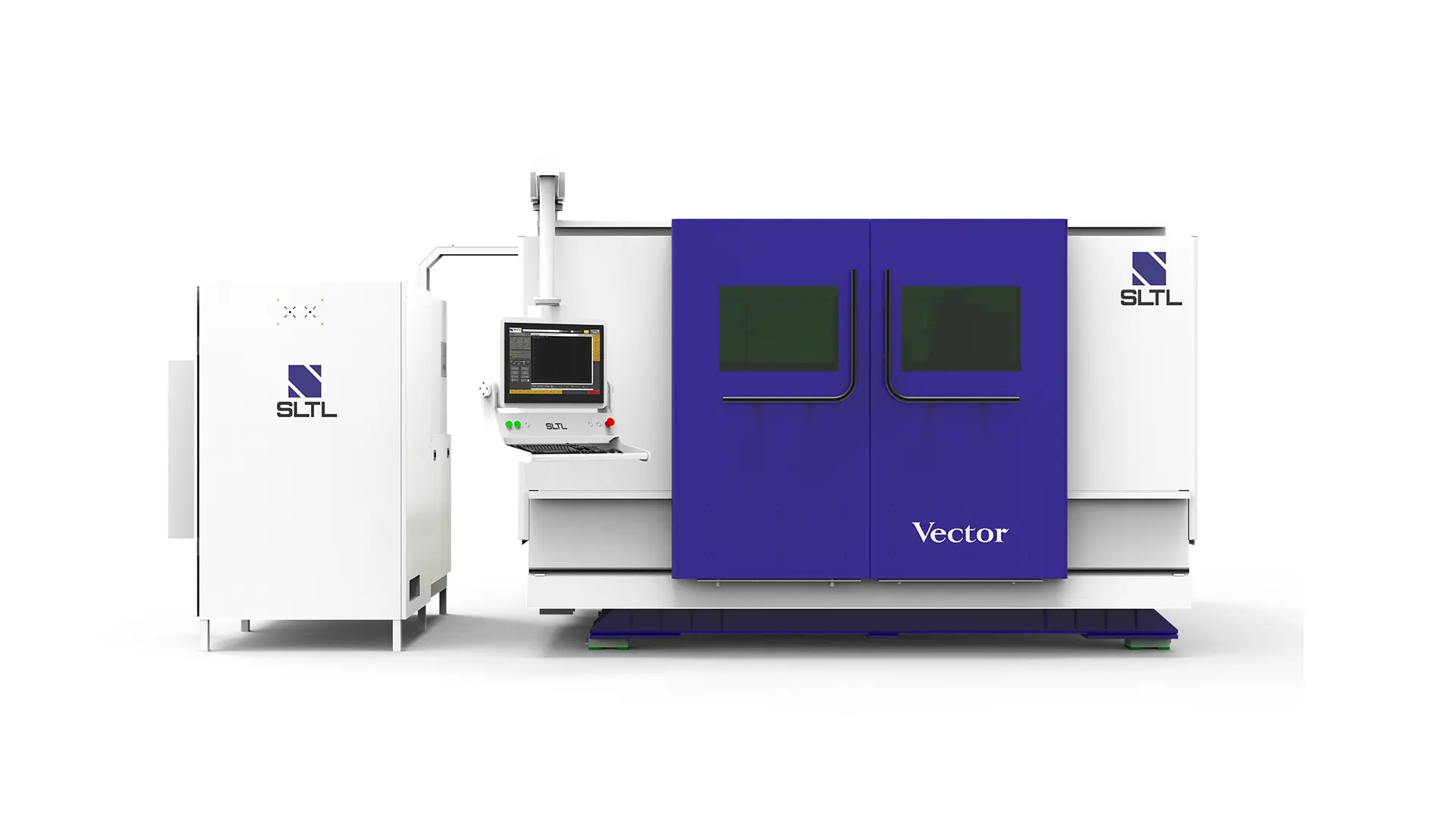

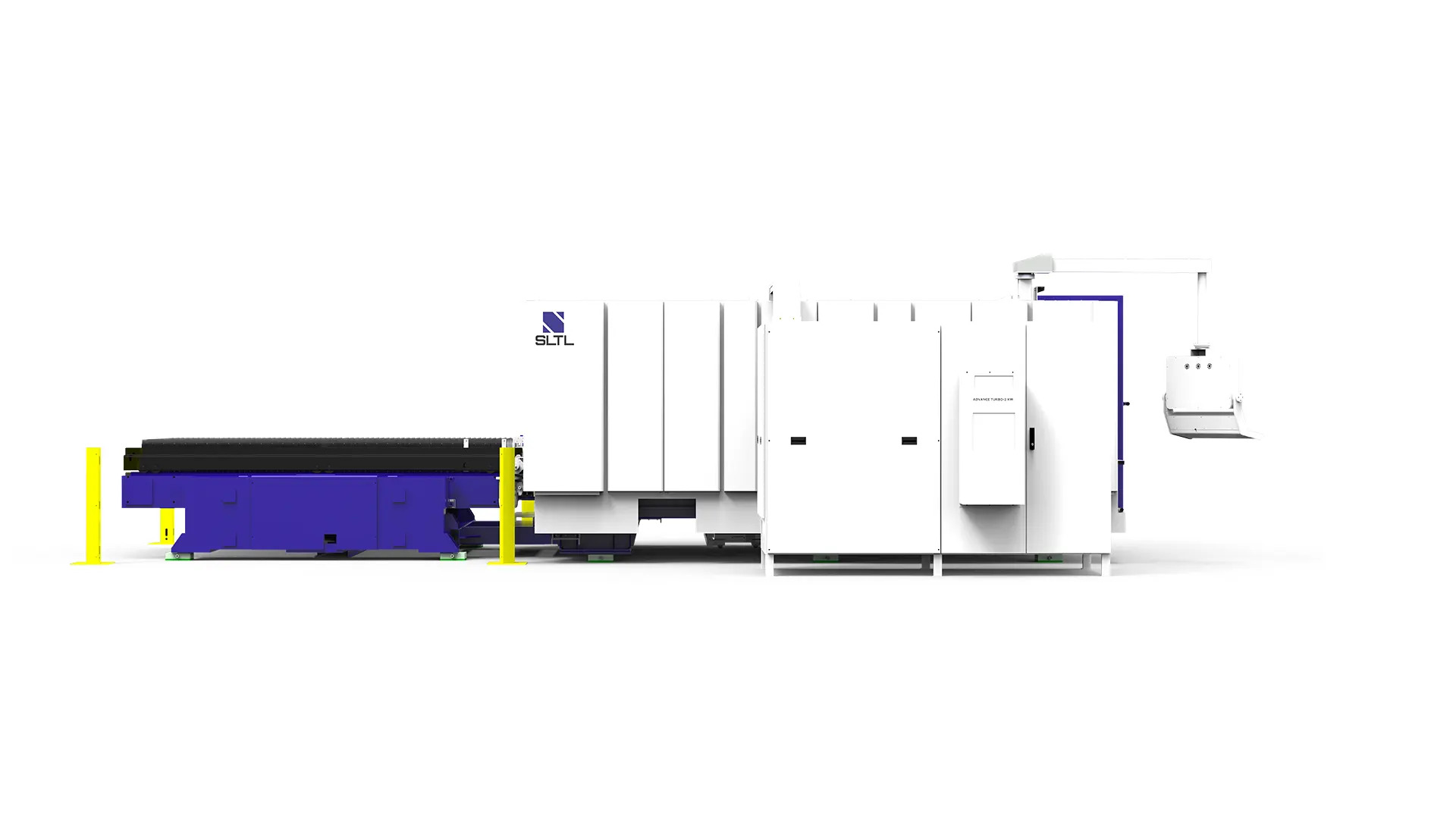

Gandhinagar, Gujarat Apr 3, 2023 (Issuewire.com) - Fiber laser cutting technology has revolutionized the manufacturing industry, providing superior cutting accuracy and speed compared to traditional cutting methods. The Vector Fiber Laser Cutting Machine by SLTL Group is an excellent example of this technology. We will explore the technical specifications, advantages, and uses of this cutting-edge machine.
Technical Specifications:
The Vector Fiber Laser Cutting Machine comes with an impressive range of technical specifications, including:
- Laser Source: The machine is equipped with a high-quality IPG laser source that delivers consistent and stable performance.
- Laser Power: The Vector offers laser power options ranging from 500 W to 12,000 W, making it suitable for a variety of applications.
- Cutting Speed: The machine offers cutting speeds up to 150 m/min, ensuring high efficiency and productivity.
- Cutting Thickness: The Vector can cut through a range of materials, including mild steel, stainless steel, aluminum, brass, copper, and titanium, with a maximum cutting thickness of up to 35 mm.
- Cutting Area: The machine offers a cutting area of up to 3000 mm x 1500 mm, providing ample space for various cutting applications.
- Control System: The machine features a user-friendly control system that allows for easy operation and efficient programming.
The SLTL Vector fiber laser cutting system is available in different laser power options ranging from 4 kW to 15 kW, offering flexibility for different cutting applications. The cutting thickness on various metals varies with the laser power, with the maximum thickness being 25 mm (1 inch) for mild steel and 30 mm (1.18 inches) for stainless steel and aluminum with a 15 kW laser.
The cutting performance of the SLTL Vector fiber laser cutting system is impressive, with a high-quality cutting surface and narrow kerf width. The system is capable of cutting a wide range of materials, including mild steel, stainless steel, aluminum, brass, and copper, with high accuracy and speed. The use of nitrogen as an assist gas enhances the cutting quality of stainless steel and aluminum, and oxygen can be used for mild steel cutting.
The power consumption of the SLTL Vector fiber laser cutting system varies with the laser power, ranging from 24 kW for a 4 kW laser to 68 kW for a 15 kW laser. The energy-efficient design of the system minimizes power consumption, resulting in reduced operating costs.
The SLTL Vector fiber laser cutting system is equipped with advanced features that ensure high reliability and ease of use. The system comes with a touch screen control panel that allows easy operation of the cutting process, and the system is equipped with a high-quality cutting head that provides stable and precise cutting performance. The automatic nozzle cleaning system ensures consistent cutting performance, and the system is designed for easy maintenance, with minimal downtime.
The SLTL Vector Fiber Laser Cutting System is available in two different working area options: 3015 and 4020. The 3015 model has a cutting area of 1550 mm (61 inches) on the X-axis and 3100 mm (122 inches) on the Y-axis, while the 4020 model has a cutting area of 2100 mm (82 inches) on the X-axis and 4100 mm (161 inches) in the Y-axis. Both models have a Z-axis of 150 mm (6 inches).
The SLTL Vector Fiber Laser Cutting System offers high acceleration and simultaneous speed, with a maximum acceleration of 3 G for the 3015 model and 2 G for the 4020 model. The simultaneous speed is 180 m/min for the 3015 model and 140 m/min for the 4020 model. This enables high-speed and efficient cutting of a wide range of materials.
The SLTL Vector Fiber Laser Cutting System offers high accuracy and repeatability, with a position accuracy of (±) 0.050 mm/meter (0.002 inches) and a repeatability of (±)0.020 mm/meter (0.001 inches). This ensures the precise cutting of complex shapes and designs.
The SLTL Vector Fiber Laser Cutting System can handle workpieces with a weight of up to 900 kg for the 3015 model and 1650 kg for the 4020 model. This makes it suitable for cutting large and heavy workpieces.
In summary, the SLTL Vector Fiber Laser Cutting System offers a wide range of working area options with high acceleration, simultaneous speed, accuracy, and repeatability, making it a versatile cutting solution for a variety of applications.
Advantages of the SLTL Vector fiber laser cutting system include high precision cutting, fast cutting speed, low operating costs, and easy maintenance. The system is ideal for a wide range of applications, including metal fabrication, the automotive industry, aerospace, and more. The SLTL Vector fiber laser cutting system is a versatile and reliable cutting solution that can meet the demands of different cutting applications.
Advantages:
The Vector Fiber Laser Cutting Machine offers several advantages over traditional cutting methods, including:
- High Precision: The machine offers high precision cutting, with an accuracy of up to 0.05 mm, ensuring that the final product meets the required specifications.
- Faster Cutting Speeds: The machine's high cutting speeds significantly reduce the time required to complete a cutting job, increasing productivity and profitability.
- Lower Maintenance: The Vector's fiber laser source has a longer lifespan and requires minimal maintenance, resulting in reduced operating costs.
- Versatility: The machine can cut through a wide range of materials, making it suitable for use in various industries, including automotive, aerospace, and medical device manufacturing.
- Improved Safety: The machine's advanced safety features, including a fully enclosed cutting area, automatic shutdown in case of an emergency, and warning alarms, ensure the safety of the operator and other personnel.
Uses:
The Vector Fiber Laser Cutting Machine can be used for a wide range of cutting applications, including:
- Sheet Metal Cutting: The machine is ideal for cutting sheet metal, such as stainless steel, aluminum, and copper, used in the manufacturing of various products.
- Signage and Advertisement: The Vector can also be used to create intricate designs for signage and advertisements, providing high-quality finishes with exceptional accuracy.
- Automotive Industry: The machine is ideal for cutting metal parts used in the automotive industry, such as engine components and body parts.
- Aerospace Industry: The Vector is also suitable for cutting complex shapes used in the aerospace industry, such as turbine blades and other components.
- Medical Device Manufacturing: The machine's high precision cutting capabilities make it ideal for cutting small and intricate components used in medical device manufacturing.
Conclusion:
The Vector Fiber Laser Cutting Machine by SLTL Group is a cutting-edge machine that offers several advantages over traditional cutting methods. With its high precision, faster cutting speeds, and lower maintenance requirements, the Vector is an excellent choice for a wide range of cutting applications in various industries. Whether you are in automotive, aerospace, medical device manufacturing, or any other industry, the Vector can help you achieve exceptional results.
